Kit contains: 2x 500 310ML+538+ 30ML+530 30ML and 2 swabs
DINITROL 500 DIRECT GLAZING ADHESIVE
The black coloured product is a humidity-curing and one component polyurethane adhesive for the direct-glazing of automotive glasses. The product provides good adhesion on paints with excellent working characteristics. DINITROL 500 is a low odour, high elasticity, solvent and PVC free, OEM approved product with excellent ageing and weather resistance properties.
BENEFITS
DINITROL 500 1K is a humidity-curing and one component polyurethane for the direct-glazing of automotive glasses. The adhesive DINITROL 500 1K includes the following properties:
Good adhesion on paints
Low odour
Excellent working characteristics
Very good standing properties
Short cut-off string
High elasticity
Solvent and PVC free
OEM approved
Ageing and weather resistant
Together with the corresponding pre-treatments as for example primers and/or activators,
DINITROL 500 1K is designed for the use in replacing polyurethane direct-glazed automotive glass parts and other bondings in vehicle manufacturing.
APPLICATION
The application of the DINITROL 500 1K is done by extrusion out of drums, pails, foil wraps and cartridges. The use of this product is suitable only for experienced users. Pre-tests are recommended for special applications.
STORAGE
Storage temperature between 0°C and 35ºC
TECHNICAL PROPERTIES
Chemical base: Polyurethane
Colour: black paste
Cure mechanism: Humidity-curing
Density (DIN 53217-4): approx. 1’200 kg/m³
Non-sag properties: very good
Application temperature: 10°C – 40°C (product)
Skin formation time1: approx. 30 min.
Open time1: approx. 25 min.
Rate of cure: approx. 3 − 4 mm / 24 h
Shore A hardness (DIN 53505): approx. 55
Tensile strength (DIN 53504): approx. 9 MPa
Elongation at break (DIN 53504): approx. 600%
Tear strength (DIN 53515): approx. 10 N/mm
Lab-shear-strength (DIN EN 1465): approx. 7 MPa
G-modulus (DIN 54451): approx. 1.3 MPa
Volume resistivity (DIN 60093): approx. 106 Ωcm
Glass transition temperature: approx. -40°C

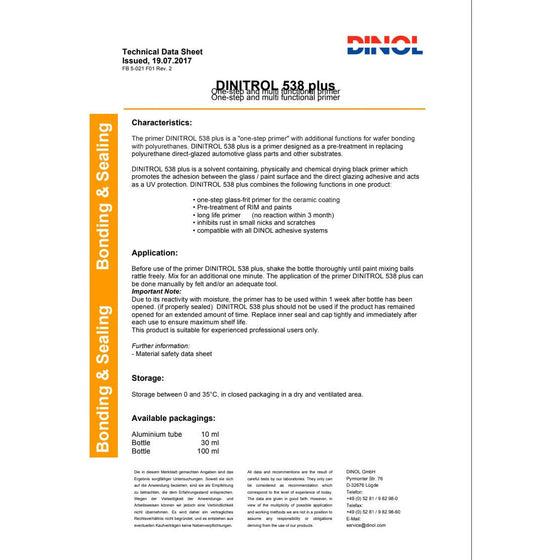

DINITROL 538+ ONE STEP PRIMER + ACTIVATOR
CHARACTERISTICS
The primer DINITROL 538 plus is a "one-step primer" with additional functions for wafer bonding with polyurethanes. DINITROL 538 plus is a primer designed as a pre-treatment in replacing polyurethane direct-glazed automotive glass parts and other substrates.
DINITROL 538 plus is a solvent containing, physically and chemical drying black primer which promotes the adhesion between the glass / paint surface and the direct glazing adhesive and acts as a UV protection. DINITROL 538 plus combines the following functions in one product:
• one-step glass-frit primer for the ceramic coating
• Pre-treatment of RIM and paints
• long life primer (no reaction within 3 month)
• inhibits rust in small nicks and scratches
• compatible with all DINOL adhesive systems
FEATURES
Cleaning agent of the bonding areas
Excellent adhesion promoter on metal & plastics (together with DINITROL 550 Multiprimer) or for the direct glazing of windscreens (with DINITROL 530)
Supports the long-term safety of replaced windscreens by DINITROL adhesives
METHOD OF USE
Before use of the primer DINITROL 538 plus, shake the bottle thoroughly until paint mixing balls rattle freely. Mix for an additional one minute. The application of the primer DINITROL 538 plus can be done manually by felt and/or an adequate tool.
Important Note: Due to its reactivity with moisture, the primer has to be used within 1 week after bottle has been opened. (if properly sealed) DINITROL 538 plus should not be used if the product has remained opened for an extended amount of time. Replace inner seal and cap tightly and immediately after each use to ensure maximum shelf life.
This product is suitable for experienced professional users only.
SAFETY PRECAUTIONS
According to 1907/2006 EC, the activator DINITROL 538+ must be labeled: Symbol: F, Storage between 0 and 35°C, in closed packaging in a dry and ventilated area.
TECHNICAL DATA
Chemical Base alcoholic solvents adhesion promoter
Colour transparent
Drying time approx. 5 Min.*
Viscosity Brookfield 1 – 5 Pas
Density, 23°C 800 ± 30 kg/m³
Application method tissue/paper
Application temperature + 5°C – 40°C
Flash point < 21°C
Flash-off time min. 10 minutes*
Coverage max. 24 hours
Approx. 50 g/m²
Shelf life 12 months
Available in 30 ml bottle, 250 ml bottle, 1 L bottle
DINITROL 530 BLACK PRIMER
CHARACTERISTICS
DINITROL 530 is a solvent containing, physically and chemically drying black primer which promotes the adhesion between the glass (in combination with the activator DINITROL 520) and paint and the direct glazing adhesive and acts as a UV protection.
DINITROL 530 combines the following functions:
Pre-treatment on glass and paint
Inhibits rust in small nicks and scratches
Compatible with all DINOL adhesive systems
FEATURES
Primer as adhesion promoter, corrosion & UV protector, activator in combination with DINITROL 538+
Excellent adhesion promoter
Supports long term safety by the use of the DINITROL adhesive system
METHOD OF USE
Before use of the primer DINITROL 530 shake the bottle thoroughly until paint mixing balls rattles freely. Mix for an additional one minute. The application of the primer DINITROL 530 can be done manually by felt and/or an adequate tool. Due to its reactivity with moisture, the opened bottle has to be used within a few days. (Recommendation: 1 week)
This product is suitable for experienced professional users only
SAFETY PRECAUTIONS
According to 1907/2006 EC, the primer DINITROL 530 is mandatory: Symbol: F, Xn Storage between 0 and 35°C, in closed packaging in a dry and ventilated area.
TECHNICAL DATA
Chemical base Reactive polyurethane adducts
Colour black liquid
Drying time approx 5 min*
Solid content 33 ± 2%
Viscosity Brookfield 17 – 25 mPas
Density, 23 °C 990 ± 20 kg/m³
Application method felt / brush
Application temperature + 5°C – 40°C
Flash point < 21°C
Flash-off time min. 10 minutes*
max. 72 hours
Coverage approx 150 g/m²
Shelf life 12 months
Available in 30 ml bottle, 100 ml bottle, 250 ml bottle, 1 L bottle

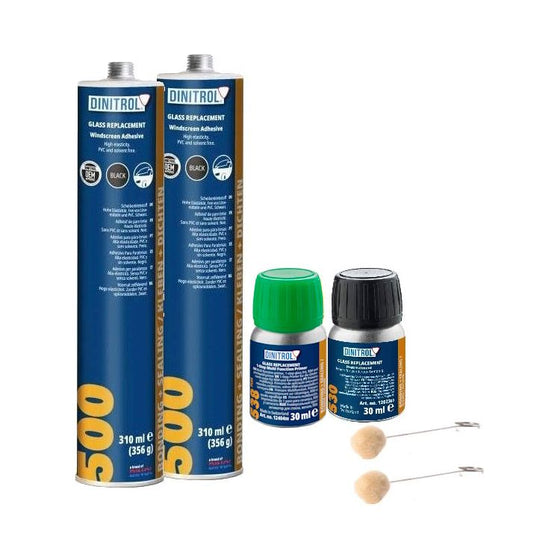

PACKAGE INCLUDES:
DINITROL 500 310ML 1x
DINITROL 530 Primer 30ML 1x
DINITROL 538+ 30ML 1x
Windscreen Bonding Felt Swab 2x
